Features of Y-type tank valve
Developed by combining advanced technology and abundant achievements, TIV Valve’s tank valves have been highly evaluated both in Japan and overseas in various fields such as chemicals, petrochemicals and foods.
The valve has a Y-type structure and the inside surface of the valve (wetted part) is buffed and there is no pocket where fluid accumulates. Since the inside surface of the valve is polished and there are no pockets, there is no accumulation of fluid inside the valve.
The length of the valve body has been shortened by making the outlet angle 60 degrees with a Y-shaped structure. The cylinder is made of aluminum and is lighter and lighter.
We customize tank valves to meet all customer specifications. Many customers, such as high temperature compatible specification, high pressure compatible specification, vacuum compatible specification, liquid contact part electropolishing specification, liquid contact part Teflon lining specification etc. are satisfied.
The cylinder for operation uses a special lubricant, so it does not require an oiler and can withstand long-term use. (Guaranteed 300,000 times. However, it depends on usage frequency and usage conditions.)
This is amazing! Tank valve
[Structure of tank valve]
・ No liquid pool due to Y-shaped configuration.
・ The mounting direction can be rotated 360 °.
・ Wetted part and drive part are completely separated.
・ Wetted parts are polished.
Tank valve is suitable for those who want to prevent liquid leakage and mixing !

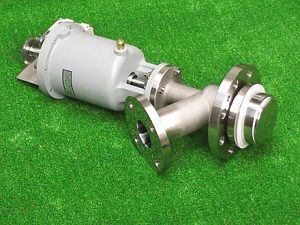

Y type external valve type tank valve

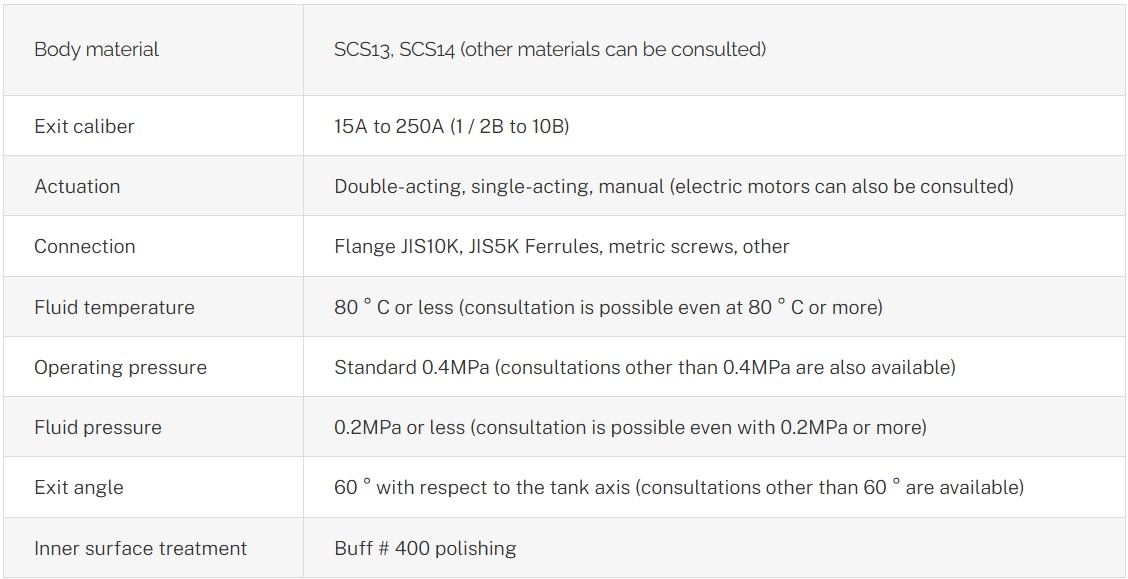

| Body material | SCS13, SCS14 (other materials can be consulted) |
|---|---|
| Exit caliber | 15A to 250A (1 / 2B to 10B) |
| Actuation | Double-acting, single-acting, manual (electric motors can also be consulted) |
| Connection | Flange JIS10K, JIS5K Ferrules, metric screws, other |
| Fluid temperature | 80 ° C or less (consultation is possible even at 80 ° C or more) |
| Operating pressure | Standard 0.4MPa (consultations other than 0.4MPa are also available) |
| Fluid pressure | 0.2MPa or less (consultation is possible even with 0.2MPa or more) |
| Exit angle | 60 ° with respect to the tank axis (consultations other than 60 ° are available) |
| Inner surface treatment | Buff # 400 polishing |
* In addition to the above standard specifications, there are special specifications such as special inner surface treatment, high temperature, low temperature, lining specification, etc. Please contact us.

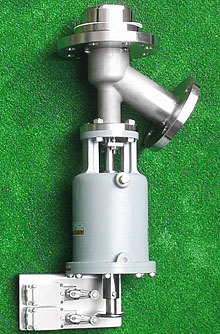

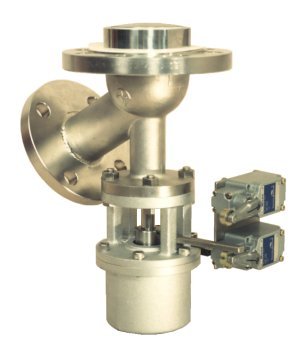

Y type internal valve type tank valve

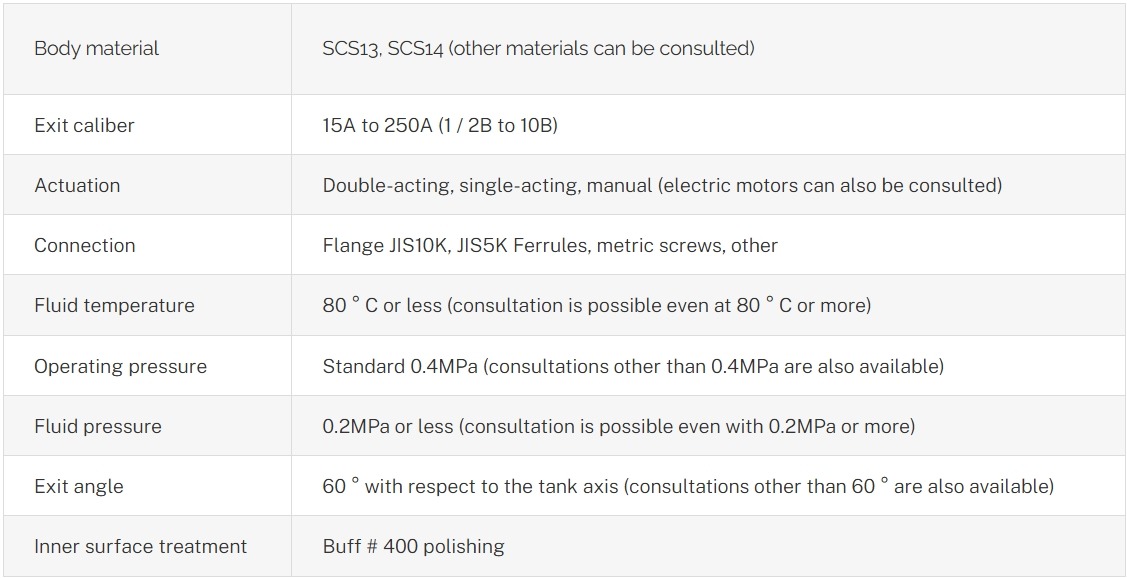

| Body material | SCS13, SCS14 (other materials can be consulted) |
|---|---|
| Exit caliber | 15A to 250A (1 / 2B to 10B) |
| Actuation | Double-acting, single-acting, manual (electric motors can also be consulted) |
| Connection | Flange JIS10K, JIS5K Ferrules, metric screws, other |
| Fluid temperature | 80 ° C or less (consultation is possible even at 80 ° C or more) |
| Operating pressure | Standard 0.4MPa (consultations other than 0.4MPa are also available) |
| Fluid pressure | 0.2MPa or less (consultation is possible even with 0.2MPa or more) |
| Exit angle | 60 ° with respect to the tank axis (consultations other than 60 ° are also available) |
| Inner surface treatment | Buff # 400 polishing |
* In addition to the above standard specifications, there are special specifications such as special inner surface treatment, high temperature, low temperature, lining specification, etc. Please contact us.
